Who should take the Cisco 300-815: Implementing Cisco Advanced Call Control and Mobility Services Exam
Those who want to discover the potential of Cisco Learning Network's dynamic culture to start certification and to achieve lifetime learning can take this examination. Those who desire relevant IT training materials for all Cisco certifications should be certified. People who have previous understanding of the integration of VPN services, including Layer 2, Layer 3, and IPv6, are strongly urged to take this examination and get Cisco certificates. The certification for (300-815) is one of the most essential certification for candidates on their resume. One of the greatest obstacles for many candidates is to utilize the internet to obtain so many facts that they cannot imagine that would benefit them by choosing the right material for their examinations. Testing troubleshooting and maintaining the Cisco mobility services (300-815) is not easier and might prove to be a very demanding examination unless properly prepared. The difficulty of the test may be solved if skilled 300-815 exam dumps are investigating and evaluating on 300-815 practice exams.
The candidates may nonetheless pass the test with the necessary attention and the right preparing material. Certification questions are the most up-to-date 300-815 pdf exam dumps which offer a well understood pattern for issues faced with actual certification by these dumping seekers. The specialists monitor certification questions for all course modifications. Certification difficulties also demand actual study, a great venue for testing knowledge. Refer to the links below for the substance of the study. The specialists monitor certification questions for all course modifications. Certification difficulties also demand actual study, a great venue for testing knowledge. Refer to the links below for the substance of the study.
NEW QUESTION 64
For s SIP to SIP call flow, when does Cisco Unified Border Element require transcoding resources for DTMF?
- A. interworking between an OOB method and RFC2833 for flow-through calls
- B. interworking between an OOB method and RFC2833 for flow-around calls
- C. interworking between h245-alpha numeric and sip-kpml
- D. interworking between h245-signal and rtp-nte
Answer: B
Explanation:
Reference:
https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-border- element/200412-DTMF-Relay-and-Interworking-on-CUBE.html#anc35
NEW QUESTION 65
Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?
- A. System > Tools > Trace and Log Central
- B. Voice/Video > Session Trace Log View > Open From Local Disk
- C. Voice/Video > Session Trace Log View > Real Time Data
- D. Analysis Manager > Inventory > Trace File Repositories
Answer: C
Explanation:
Reference:
https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications- manager-callmanager/213583-procedure-to-analyse-call-flow-of-sip-ca.html
NEW QUESTION 66
An engineer is troubleshooting Cisco Device Mobility and find that the phone has roamed to a building that is assigned to a different device pool but has not changed its device pool accordingly What action resolves the issue?
- A. Enable SRST under Current Device Mobility Settings
- B. Set the correct subnet under Device Mobility Info.
- C. Set Device CSS under Current Device Mobility Settings.
- D. Set correct Location under Current Device Mobility Settings
Answer: B
NEW QUESTION 67

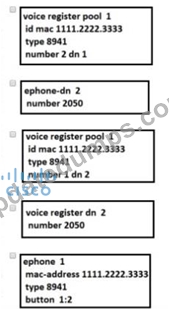

An IP Telephony administrator is deploying IP phones The administrator has an existing Cisco UCME router with several SCCP & SIP phones registered. The administrator receives a request for a new SIP phone with MAC address 1111 2222.3333 and directory number 2050 to be added in the Cisco UCME. Which two configurations should be added in CME to support this request? (Choose two )
- A. Option B
- B. Option A
- C. Option C
- D. Option E
- E. Option D
Answer: C,E
NEW QUESTION 68
When the services key is pressed Cisco Extension Mobility does not show up. What is the cause of the issue?
- A. The phone is not subscribed to Cisco Extension Mobility Service.
- B. The URL configured for Cisco Extension Mobility is not correct.
- C. Cisco Extension Mobility Service is not running.
- D. Cisco Extension Mobility is not enabled in the Phone Configuration Window (Device > Phone)
Answer: A
NEW QUESTION 69
A network engineer designs a new dial plan and wants to block a certain range of numbers (8135100 through 8135105). What is the most specific route pattern that can be configured to block only the numbers in this range?
- A. 813510[012345]
- B. 813510[^0-5]
- C. 81XXXXX
- D. 813510[12345]
Answer: A
NEW QUESTION 70
Configure Call Queuing in Cisco Unified Communications Manager. Where do you set the maximum number of callers in the queue?
- A. in Cisco Unified CM Enterprise Parameters
- B. in Cisco Unified CM Service Parameters
- C. in the telephony service configuration
- D. in the queuing configuration
Answer: D
Explanation:
Reference:
https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications- manager-callmanager/200453-Configure-CUCM-Native-Call-Queuing-Featu.html
NEW QUESTION 71

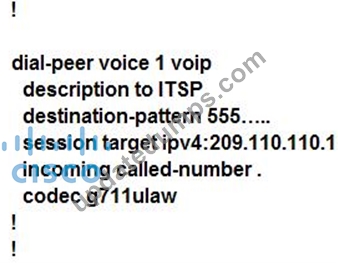

Refer to the exhibit.
An engineer configures Cisco Unified Border Element to connect the enterprise VoIP network with a SIP telephony provider. Calls are not working in either direction. What must be configured in the dial peer 1 to fix the issue?
- A. session-protocol sipv2
- B. codec g729
- C. incoming called number 555.......
- D. answer-address 555 ........
Answer: C
NEW QUESTION 72
Which two types of distribution algorithm are within a line group? (Choose two.)
- A. highest preference
- B. circular
- C. random
- D. top down
- E. bottom up
Answer: B,D
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/9_0_1/ccmcfg/ CUCM_BK_CDF59AFB_00_admin-guide-90/CUCM_BK_CDF59AFB_00_admin-guide_chapter_0100011.html
NEW QUESTION 73
Refer to the exhibit. A standard local route group is configured for long-distance calls. Calls from building A succeed, but calls from building B fail. On the system. Each building has is own device pool. The DNA tool is used to test the configuration. How is this issue resolved?
- A. Add a sip trunk inside route group Standard Local Route Group.
- B. Modify the route pattern to add a prefix of 91
- C. Change the partition of the route pattern
- D. Add a local route group on the device pool configuration.
Answer: D
NEW QUESTION 74
Which section under the Real-Time Monitoring Tool allows for reviewing the call flow and signaling for a SIP call in real time?
- A. System > Tools > Trace and Log Central
- B. Voice/Video > Session Trace Log View > Open From Local Disk
- C. Voice/Video > Session Trace Log View > Real Time Data
- D. Analysis Manager > Inventory > Trace File Repositories
Answer: C
NEW QUESTION 75
What is first preference condition matched in a SIP-enabled incoming dial peer?
- A. target carrier-id
- B. incoming uri
- C. answer-address
- D. incoming called-number
Answer: B
Explanation:
Section: Signaling and Media Protocols
Explanation
Explanation/Reference: https://www.cisco.com/c/en/us/support/docs/voice/ip-telephony-voice-over-ip-voip/211306-In- Depth-Explanation-of-Cisco-IOS-and-IO.html#anc8
NEW QUESTION 76
What is the relationship between partition, time schedule, and time period in Time-of-Day routing in Cisco Unified Communications Manager?
- A. A partition can have multiple time schedules assigned. A time schedule contains only one time period.
- B. A partition can have one time schedule assigned. A time schedule contains only one time period.
- C. A partition can have one time schedule assigned. A time schedule contains one or more time periods.
- D. A partition can have multiple time schedules assigned. A time schedule contains one or more time periods.
Answer: D
NEW QUESTION 77

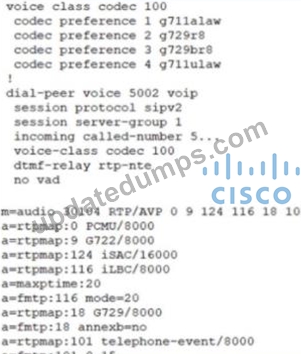

Refer to the exhibit.
The Cisco Unified Border Element receives an INVITE matching inbound dial peer 5002. The outbound dial peer supports only iLBC. and a Local Transcoding Interface is allocated. Based on the configuration and SDP from the INVITE message, which codec is chosen by Cisco Unified Border Element for the inbound call leg?
- A. G.711 U-law
- B. G.711 A-law
- C. G.729r8
- D. G.729br8
Answer: C
NEW QUESTION 78
A company has an SRST gateway running an IOS XE image. The company plans to enable the IPv6 addressing companywide. To enable the IPv6 in a unified SRST gateway to support SIP phones, what are two supported supplementary features for an IPv6 fallback scenario? (Choose two.)
- A. SIP trunk
- B. T.38 fax relay
- C. secure SIP lines
- D. transcoding
- E. three-way conference
Answer: B,E
NEW QUESTION 79
What are two configureation features of the Client matter code setting in the route pattern configuration? (Choose two.)
- A. The Client Matter Code feature provides the option to configure Authorization Level susch as in the Forced Authorization Code.
- B. Selecting the Allow Overlap Sending setting disables the Require Client Matter Code setting.
- C. Selecting the Allow Overlap Sending setting allows a user to select the Require Client Matter Code setting.
- D. The client Matter Code feature supports overlap sending since the Cisco UCM can determine when to prompt the user for the code.
Answer: A,B
NEW QUESTION 80
Which two descriptions of the Standard Local Route Group deployment are true? (Choose two.)
- A. can be associated only under the route list
- B. chooses the route group that is configured under the device pool of the called-party device
- C. can be assigned directly to the route pattern
- D. can be associated under the route group
- E. chooses the route group that is configured under the device pool of the calling-party device
Answer: A,B
NEW QUESTION 81

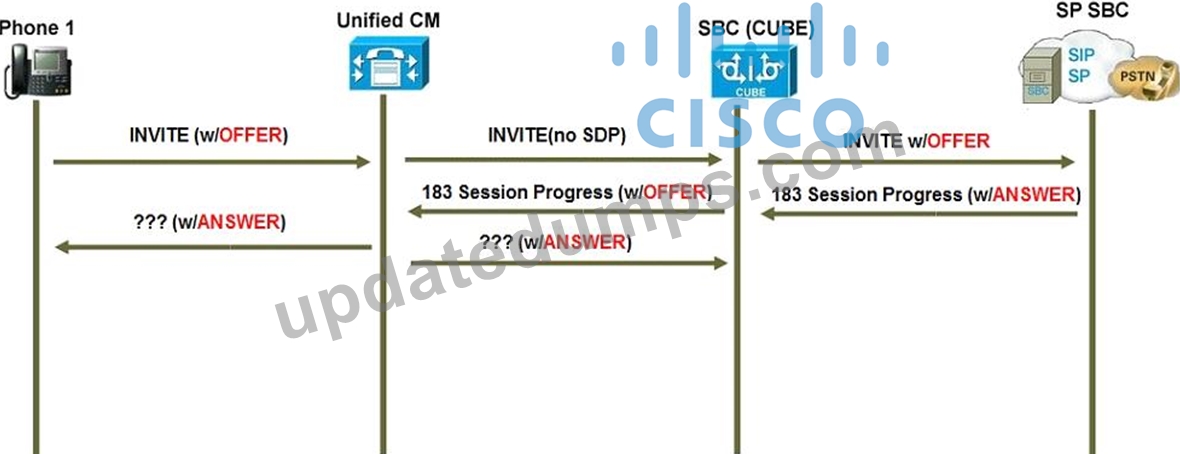

Refer to the exhibit.
A user reports that when they call a specific phone number, no one answers the call, but when they call from a mobile phone, the call is answered. The engineer troubleshooting the issue is expecting the far-end gateway to cut through audio on the 183 Session Progress SIP message. Which SIP Profile configuration element is necessary for the Cisco Unified Communications Manager to send acknowledgement of provisional responses?
- A. On the SIP Profile, the configuration parameter SIP Rel1XX Options must be set to Send PRACK for all 1xx Messages.
- B. Accept Audio Codec Preferences in Received Offer must be set to On.
- C. Allow Passthrough of Configured Line Device Caller Information must be enabled.
- D. Early Offer for G Clear Calls must be enabled.
Answer: A
NEW QUESTION 82
......
